Back that data up: Data transfer tools​

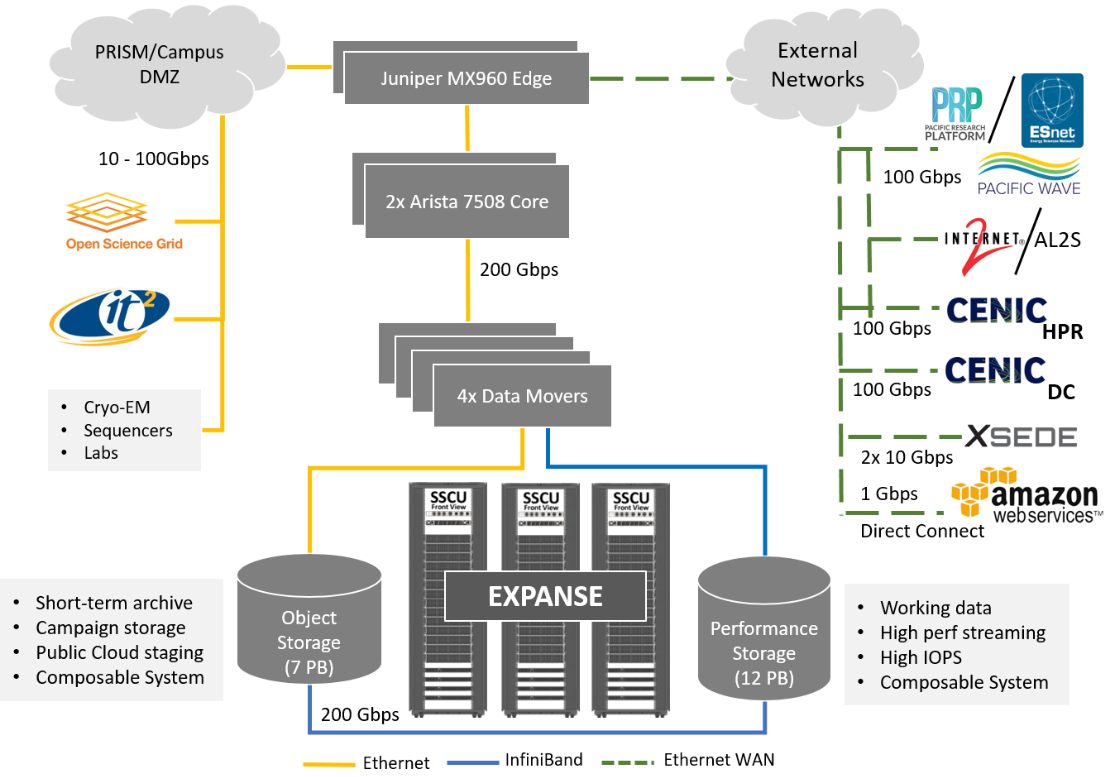

Expanse Storage and External Networks

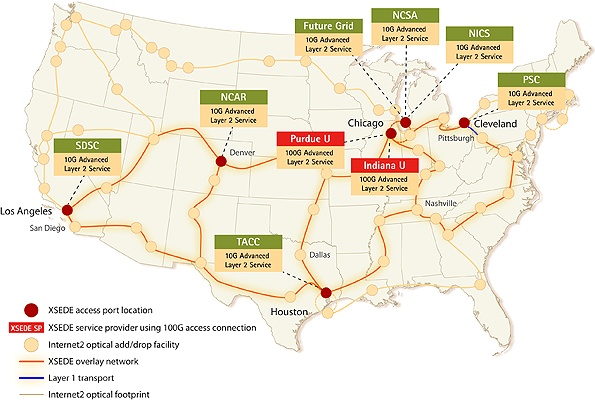

Research and Education Networks

scp - OpenSSH secure file copy​

$ scp expanse:~/CIFAR-10-images.zip ./
CIFAR-10-images.zip                           100%   77MB  20.8MB/s   00:03
$ ls
 CIFAR-10-images.zip   Downloads   Pictures   Templates
 Desktop               Dropbox     Public     Videos
 Documents             Music       snap      'VirtualBox VMs'
$ md5sum CIFAR-10-images.zip
072722c0adb133f80ce1e96c60439470  CIFAR-10-images.zip
$ scp -r expanse:~/cifar-10-batches-py/ ./
test_batch                                    100%   30MB  16.4MB/s   00:01
data_batch_3                                  100%   30MB  23.7MB/s   00:01
data_batch_4                                  100%   30MB  23.2MB/s   00:01
readme.html                                   100%   88     1.2KB/s   00:00
data_batch_1                                  100%   30MB  22.4MB/s   00:01
data_batch_5                                  100%   30MB  21.3MB/s   00:01
batches.meta                                  100%  158     2.0KB/s   00:00
data_batch_2                                  100%   30MB  22.6MB/s   00:01
$ ls
 cifar-10-batches-py   Documents   Music      snap       'VirtualBox VMs'
 CIFAR-10-images.zip   Downloads   Pictures   Templates
 Desktop               Dropbox     Public     Videos

sftp - OpenSSH secure file transfer​

$ sftp expanse
Connected to expanse.
sftp> pwd
Remote working directory: /home/xdtr108
sftp> lpwd
Local working directory: /home/mkandes
sftp> cd /expanse/lustre/scratch/xdtr108/temp_project/
sftp> ls
CIFAR-10-images.tar.gz    ILSVRC2012_img_val.tar    gene_info.gz
striped
sftp> get gene_info.gz
Fetching /expanse/lustre/scratch/xdtr108/temp_project/gene_info.gz to gene_info.gz
/expanse/lustre/scratch/xdtr108/temp_project/ 100%  791MB  22.5MB/s   00:35
sftp> put CIFAR-10-images.zip
Uploading CIFAR-10-images.zip to /expanse/lustre/scratch/xdtr108/temp_project/CIFAR-10-images.zip
CIFAR-10-images.zip                           100%   77MB   2.8MB/s   00:27
sftp> ls
CIFAR-10-images.tar.gz    CIFAR-10-images.zip       ILSVRC2012_img_val.tar
gene_info.gz              striped
sftp> exit
$ ls
 cifar-10-batches-py   Documents   gene_info.gz   Public      Videos
 CIFAR-10-images.zip   Downloads   Music          snap       'VirtualBox VMs'
 Desktop               Dropbox     Pictures       Templates
$ sftp xdtr108@oasis-dm-interactive.sdsc.edu
Connected to oasis-dm-interactive.sdsc.edu.
sftp> get /expanse/lustre/scratch/xdtr108/temp_project/ILSVRC2012_img_val.tar
Fetching /expanse/lustre/scratch/xdtr108/temp_project/ILSVRC2012_img_val.tar to ILSVRC2012_img_val.tar
/expanse/lustre/scratch/xdtr108/temp_project/ 100% 6432MB  24.1MB/s   04:26
sftp> exit
$

lftp - Another (sophisticated) file transfer program​

$ lftp sftp://xdtr108@oasis-dm-interactive.sdsc.edu
Password:
lftp xdtr108@oasis-dm-interactive.sdsc.edu:~> pget -n 8 /expanse/lustre/scratch/xdtr108/temp_project/ILSVRC2012_img_val.tar
6744924160 bytes transferred in 153 seconds (42.16 MiB/s)
lftp xdtr108@oasis-dm-interactive.sdsc.edu:~> exit
$

Globus - Secure, reliable research data management​

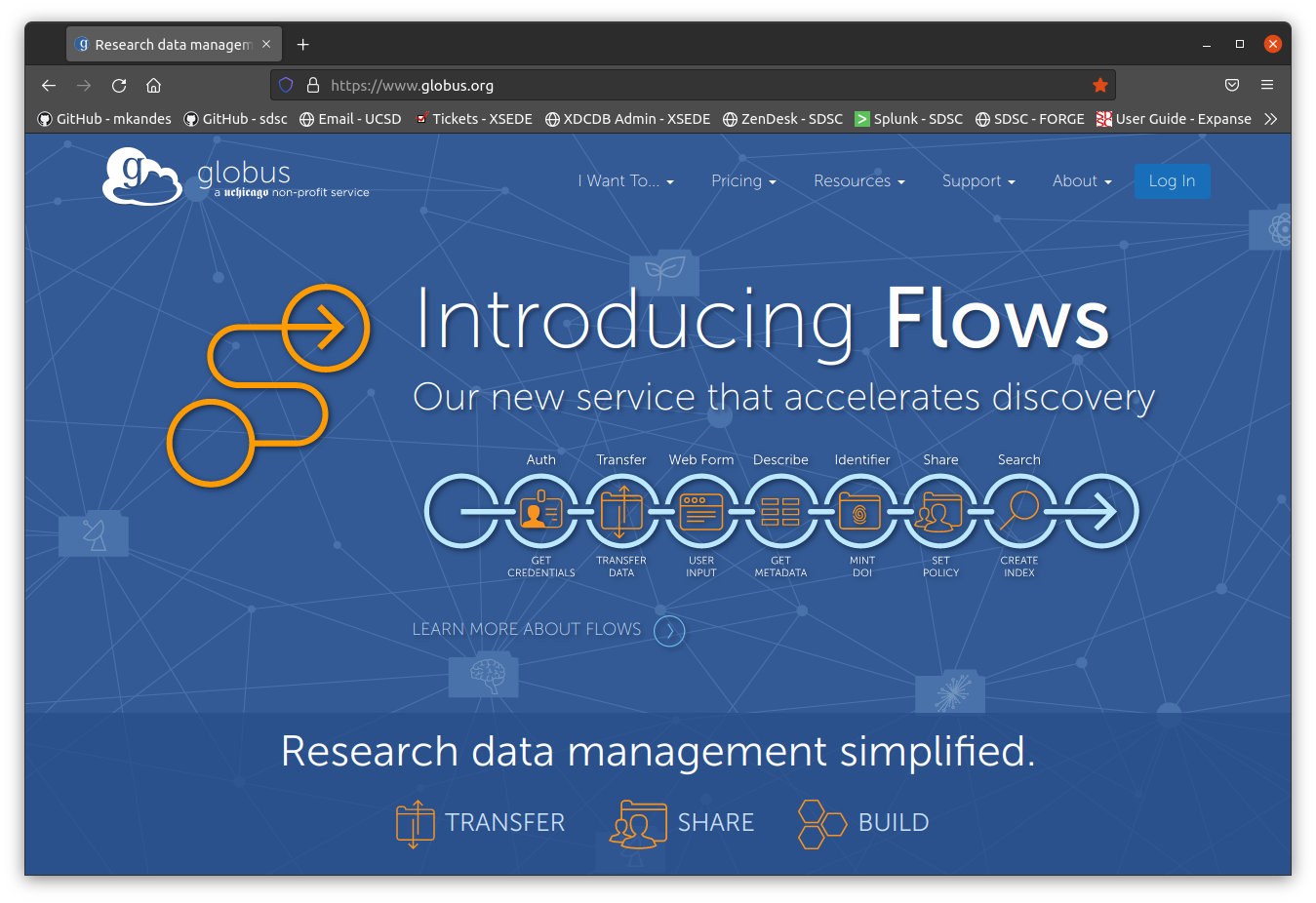

Globus - Home

$ globus endpoint search 'XSEDE Expanse'
ID                                   | Owner              | Display Name
------------------------------------ | ------------------ | ----------------------------------------------------------
b256c034-1578-11eb-893e-0a5521ff3f4b | xsede@globusid.org | XSEDE Expanse
9ca935c8-2deb-11ec-95dc-853490a236f9 | cosmic2@xsede.org  | COSMIC2 Science Gateway storage on XSEDE Expanse
2552f468-2dec-11ec-95dc-853490a236f9 | cosmic2@xsede.org  | COSMIC2 Science Gateway storage on XSEDE Expanse (staging)
d74d0ede-4402-11ec-a9c7-91e0e7641750 | sivagnan@xsede.org | NSG private share for Simon on Expanse
0d0ad3e4-4403-11ec-a6bf-9b4f84e67de8 | sivagnan@xsede.org | NSG public share for Simon on Expanse

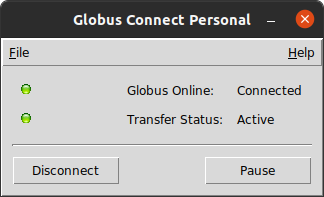

Globus Personal Connect

$ globus endpoint search 'hardtack'
ID                                   | Owner              | Display Name
------------------------------------ | ------------------ | ------------
6d66770e-0e95-11ed-8dae-9f359c660fbd | mckandes@xsede.org | hardtack
$ export SOURCE_ENDPOINT_ID='b256c034-1578-11eb-893e-0a5521ff3f4b'
mkandes@hardtack:~$ export DEST_ENDPOINT_ID='6d66770e-0e95-11ed-8dae-9f359c660fbd'
mkandes@hardtack:~$ globus transfer "${SOURCE_ENDPOINT_ID}:/expanse/lustre/scratch/mkandes/temp_project/ILSVRC2012_img_val.tar" "${DEST_ENDPOINT_ID}:~/ILSVRC2012_img_val.tar"
Message: The transfer has been accepted and a task has been created and queued for execution
Task ID: 551a8ecc-0eab-11ed-8dae-9f359c660fbd
$ globus task show 551a8ecc-0eab-11ed-8dae-9f359c660fbd
Label:                        None
Task ID:                      551a8ecc-0eab-11ed-8dae-9f359c660fbd
Is Paused:                    False
Type:                         TRANSFER
Directories:                  0
Files:                        1
Status:                       ACTIVE
Request Time:                 2022-07-28T19:27:35+00:00
Faults:                       0
Total Subtasks:               2
Subtasks Succeeded:           1
Subtasks Pending:             1
Subtasks Retrying:            0
Subtasks Failed:              0
Subtasks Canceled:            0
Subtasks Expired:             0
Subtasks with Skipped Errors: 0
Deadline:                     2022-07-29T19:27:35+00:00
Details:                      OK
Source Endpoint:              XSEDE Expanse
Source Endpoint ID:           b256c034-1578-11eb-893e-0a5521ff3f4b
Destination Endpoint:         hardtack
Destination Endpoint ID:      6d66770e-0e95-11ed-8dae-9f359c660fbd
Bytes Transferred:            0
Bytes Per Second:             0
$ globus task show 551a8ecc-0eab-11ed-8dae-9f359c660fbd
Label:                        None
Task ID:                      551a8ecc-0eab-11ed-8dae-9f359c660fbd
Is Paused:                    False
Type:                         TRANSFER
Directories:                  0
Files:                        1
Status:                       SUCCEEDED
Request Time:                 2022-07-28T19:27:35+00:00
Faults:                       0
Total Subtasks:               2
Subtasks Succeeded:           2
Subtasks Pending:             0
Subtasks Retrying:            0
Subtasks Failed:              0
Subtasks Canceled:            0
Subtasks Expired:             0
Subtasks with Skipped Errors: 0
Completion Time:              2022-07-28T19:30:59+00:00
Source Endpoint:              XSEDE Expanse
Source Endpoint ID:           b256c034-1578-11eb-893e-0a5521ff3f4b
Destination Endpoint:         hardtack
Destination Endpoint ID:      6d66770e-0e95-11ed-8dae-9f359c660fbd
Bytes Transferred:            6744924160
Bytes Per Second:             33060759
$ globus endpoint search 'XSEDE TACC Stampede2'
ID                                   | Owner              | Display Name
------------------------------------ | ------------------ | --------------------
ceea5ca0-89a9-11e7-a97f-22000a92523b | xsede@globusid.org | XSEDE TACC stampede2
$ export DEST_ENDPOINT_ID='ceea5ca0-89a9-11e7-a97f-22000a92523b'
$ globus transfer "${SOURCE_ENDPOINT_ID}:/expanse/lustre/scratch/mkandes/temp_project/ILSVRC2012_img_val.tar" "${DEST_ENDPOINT_ID}:/work2/03216/mckandes/stampede2/ILSVRC2012_img_val.tar"
Message: The transfer has been accepted and a task has been created and queued for execution
Task ID: 1b4546a0-0eac-11ed-8dae-9f359c660fbd
$ globus task show 1b4546a0-0eac-11ed-8dae-9f359c660fbd
Label:                        None
Task ID:                      1b4546a0-0eac-11ed-8dae-9f359c660fbd
Is Paused:                    False
Type:                         TRANSFER
Directories:                  0
Files:                        1
Status:                       SUCCEEDED
Request Time:                 2022-07-28T19:33:07+00:00
Faults:                       0
Total Subtasks:               2
Subtasks Succeeded:           2
Subtasks Pending:             0
Subtasks Retrying:            0
Subtasks Failed:              0
Subtasks Canceled:            0
Subtasks Expired:             0
Subtasks with Skipped Errors: 0
Completion Time:              2022-07-28T19:33:34+00:00
Source Endpoint:              XSEDE Expanse
Source Endpoint ID:           b256c034-1578-11eb-893e-0a5521ff3f4b
Destination Endpoint:         XSEDE TACC stampede2
Destination Endpoint ID:      ceea5ca0-89a9-11e7-a97f-22000a92523b
Bytes Transferred:            6744924160
Bytes Per Second:             255829087
https://github.com/mlcommons/training_policies/blob/master/hpc_training_rules.adoc#31-closed-division
https://github.com/mlcommons/hpc/tree/main/deepcam#dataset

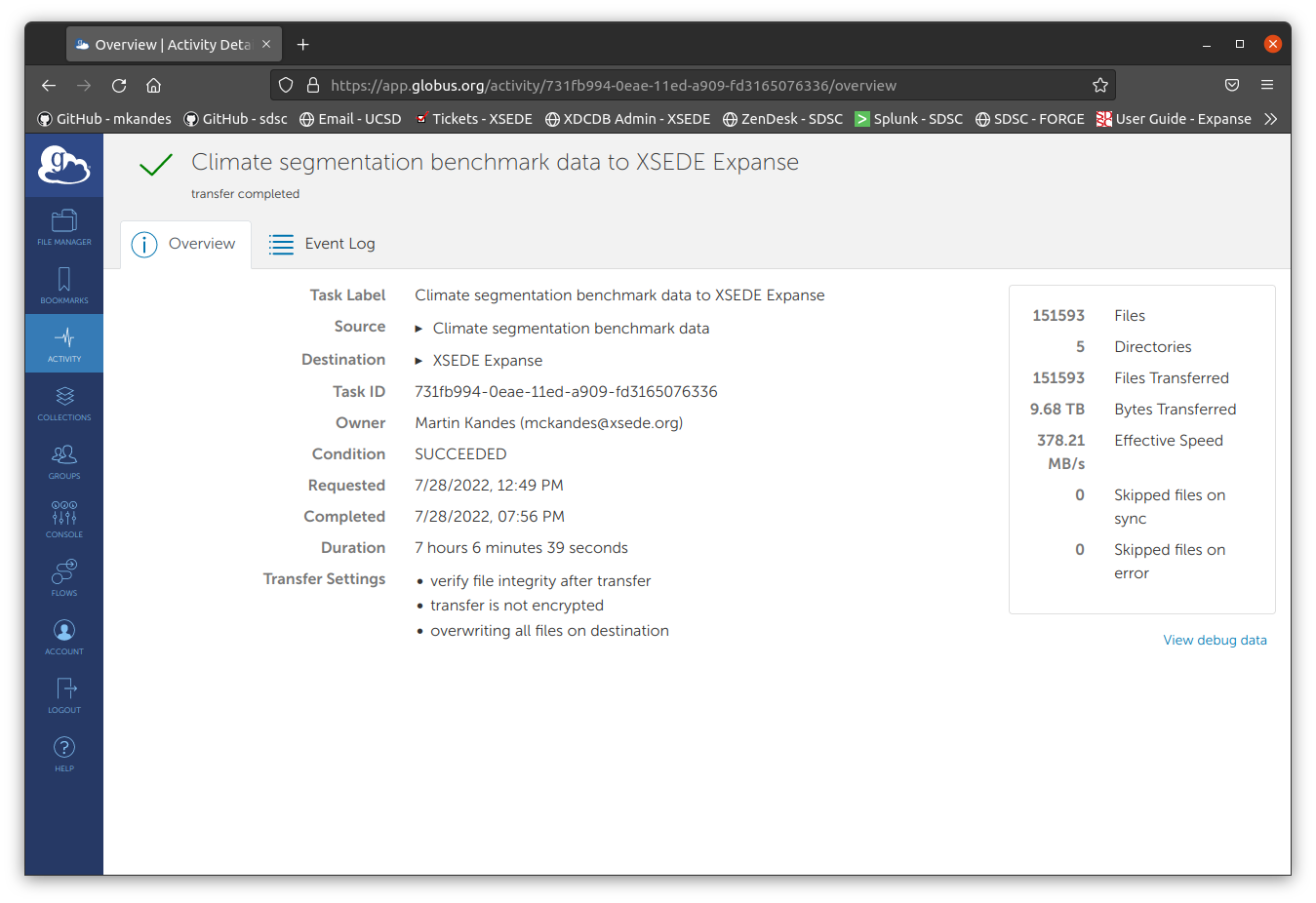

DeepCam - Climate Segmentation Dataset - Globus Transfer

AWS Snowmobile

Image Credit: Amazon Web Services

Long-term, archival data storage​

Magnetic tape is still a thing.

  • TACC Ranch: Ranch is fundamentally implemented using long-term tape storage and as such is designed for archiving data that is in a state wherein the data will not likely change, and will not likely need to be accessed very often.

Send your data to the cloud!

Run your own NAS.

Western Digital My Cloud
